A wide choice of integrated micromotors and ultrasonic scalers designed for outstanding performance. Combine this with the extensive range of NSK contra-angle handpieces and tips to cover all aspects of dental procedures to the highest standards.Evolution, Transformation & ImprovementEquip your dental unit with the latest leading-edge technologies. You will benefit from the latest control systems and the highest-performance instruments available to the market. Your supplier can easily integrate all of these NSK products in to your new or existing dental equipment.All of these products have been designed to give you everything you may need to treat your patients with confidence.The Integrated System- Electric Micromotor Integrated System (NLX BF) and Multi Function- Ultrasonic Scaler (Varios 170) can be controlled with the system.

Performance

Micromotors solutions
  • Power
  • LED illumination
  • Miniaturization
  • Silence
  • No vibration
  • Low power consumption
  • Endo function
Ultrasonic scalers solutions
  • Power output
  • Double LED lighting
  • Miniaturization of PCB
  • Tactile feel
  • Most ergonomic handpiece design
NLX nano NLX plus Ti-Max M40 LED Ti-Max NBX
Length (mm) 45 51 67 80.8
Weight (gr) 64 72 98 85
Speed (RPM) 1,000 to 40,000 100 to 40,000 60 to 40,000 60 to 40,000

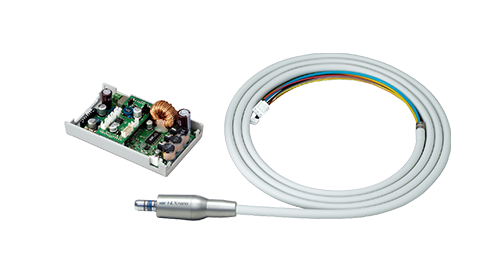

NLX nano

NLX nano

Electric Micromotor Integrated System (Brushless) - Specifications

  • Speed
  • 1,000-40,000 min-1
  • Torque
  • 3.4 Ncm
  • NLX nano

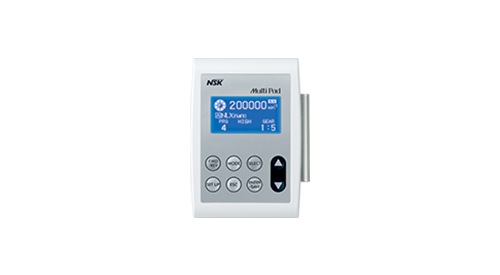

    • Model:Multi Pad
    • Order Code:Y1001845
    • Model:Multi Pad Auto-Select
    • Order Code:Y1001846

    Specifications

    • Input Voltage
    • DC + 12 V
    • Input Connect
    • 100 mA
    • Max. Output Power
    • 1.2 W
    • Dimensions
    • W 95 x D 138 x H 31 mm

    Contents

    • Multi Pad Unit
    • Angle Plate (Mounting Bracket)
    • Screws
  • NLX nano
    • Model:NLX BF
    • Order Code:Y1002122

    Specifications

    • Dimensions with Case
    • W 115 x D 68.5 x H 40 mm

    Power module with lamp and air function for integrated system

  • NLX nano
    • Model:NLS ADP
    • Order Code:U1020050

    Specifications

    • Dimensions
    • W 60.2 x D 81.4 x H 45.2 mm

    24 Vac - 32 Vdc converter for integrated system

  • NLX nano
    • Model:NLS SEL
    • Order Code:Y1001808

    Specifications

    • Dimensions
    • W 62 x D 50 x H 28.6 mm

    Selector module for integrated system

  • NLX nano
    • Optic
    • Model:NLX nano
    • Order Code:E1044051

    Features

    • Solid Titanium Body
    • Autoclavable up to 135°C

    Contents

    • NLX nano Micromotor (cord not included)
  • NLX nano
    • Optic
    • Model:nano CDB
    • Order Code:E1044066

    NLX nano micromotor cord for integrated system (2.2 m)

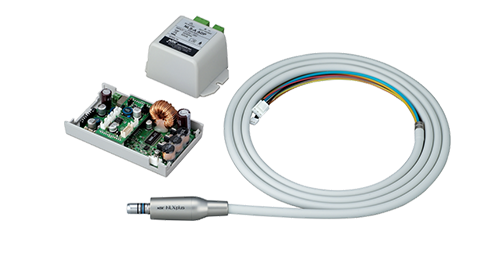

NLX plus

NLX plus

Electric Micromotor Integrated System (Brushless) - Specifications

  • Speed
  • 100-40,000 min-1
  • Torque
  • 4.0 Ncm
  • NLX plus
    • Model:Multi Pad
    • Order Code:Y1001845
    • Model:Multi Pad Auto-Select
    • Order Code:Y1001846

    Specifications

    • Input Voltage
    • DC + 12 V
    • Input Connect
    • 100 mA
    • Max. Output Power
    • 1.2 W
    • Dimensions
    • W 95 x D 138 x H 31 mm

    Contents

    • Multi Pad Unit
    • Angle Plate (Mounting Bracket)
    • Screws
  • NLX plus
    • Model:NLX BF
    • Order Code:Y1002122

    Specifications

    • Dimensions with Case
    • W 115 x D 68.5 x H 40 mm

    Power module with lamp and air function for integrated system

  • NLX plus
    • Model:NLS ADP
    • Order Code:U1020050

    24 Vac - 32 Vdc converter for integrated system

  • NLX plus
    • Model:NLS SEL
    • Order Code:Y1001808

    Specifications

    • Dimensions
    • W 62 x D 50 x H 28.6 mm

    Selector module for integrated system

  • NLX plus
    • Optic
    • Model:NLX plus
    • Order Code:E1040051

    Features

    • Solid Titanium Body
    • Autoclavable up to 135°C

    Contents

    • NLX plus Micromotor (cord not included)
  • NLX plus
    • Optic
    • Model:plus CD
    • Order Code:E1040062

    NLX plus micromotor cord for integrated system (2.2 m)

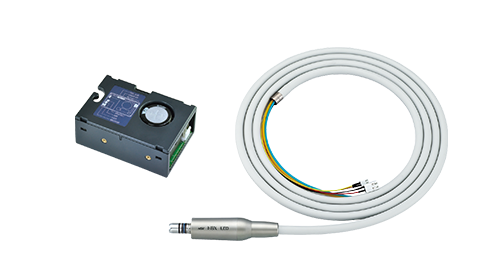

NBX / iMD

NBX / iMD

Electric Micromotor Integrated System (Brush) - Specifications

  • Speed
  • 60-40,000 min-1
  • Torque
  • 4.0 Ncm
  • NBX / iMD
    • Model:Multi Pad
    • Order Code:Y1001845
    • Model:Multi Pad Auto-Select
    • Order Code:Y1001846

    Specifications

    • Input Voltage
    • DC + 12 V
    • Input Connect
    • 100 mA
    • Max. Output Power
    • 1.2 W
    • Dimensions
    • W 95 x D 138 x H 31 mm

    Contents

    • Multi Pad Unit
    • Angle Plate (Mounting Bracket)
    • Screws

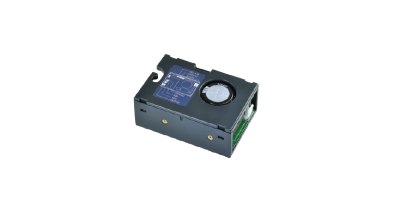

  • NBX / iMD
    • Model:iMD BS
    • Order Code:Y1002845

    Specifications

    • Dimensions
    • W 86 x D 57 x H 33 mm

    Power module for integrated system

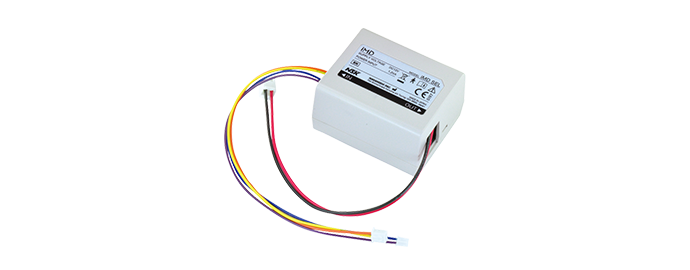

  • NBX / iMD
    • Model:iMD SEL
    • Order Code:Y1002848

    Specifications

    • Dimensions
    • W 68.5 x D 56.5 x H 38.5 mm

    Selector module for integrated system

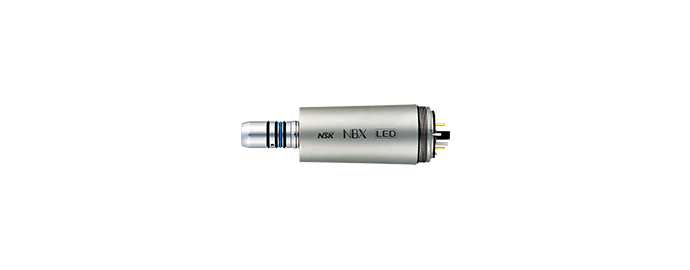

  • NBX / iMD
    • Optic
    • Model:NBX
    • Order Code:E1059051

    Features

    • Solid Titanium Body

    Contents

    • Micromotor (cord not included)
  • NBX / iMD
    • Optic
    • Model:NBX CDB
    • Order Code:E1059061

    NBX micromotor cord for integrated system
