Feel the Satisfaction of X Series Performance

NSK X series contra-angles feature the advanced technology combined with elegant yet ergonomic design. X series contra-angles have been designed without compromise paying attention to every last detail. Better possible access to the operating field and maximum visibility were the most important criteria during the design process of the instrument body. Unrivaled reliability and superior operator and patient comfort reflect all the expertise which has been built into each and every model of the NSK Ti-Max X Series.

Technology & Function

  • Microfilter
    Microfilter

    Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.

  • Clean Head System
    Clean Head System

    The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer.

  • Titanium Body
    Titanium Body

    Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
    *Titanium is used only for the exterior parts, and not for the interior.

  • Quattro Water Spray
    Quattro Water Spray

    The NSK Quattro Water Spray effectively cools the entire surface of the bur with a high cooling effect, leaving no areas untreated.

  • DURAGRIP
    DURAGRIP

    An ergonomic body shape and the introduction of new DURAGRIP coating provide superior grip and handling comfort.

  • Single Water Spray
    Single Water Spray

    The NSK Single Water Spray effectively cools the surface of the bur with a high cooling effect. (With X65L / X65)

General Applications

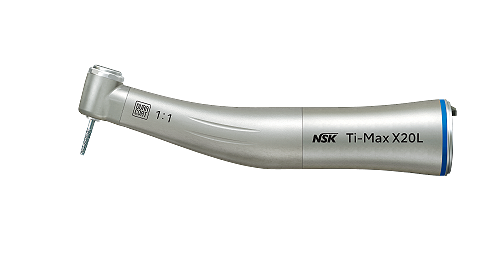

X20L1:1

  • General Applications/X20L
    • Optic
    • Model:X20L
    • Order Code:C605
    • Non-Optic
    • Model:X20
    • Order Code:C615

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

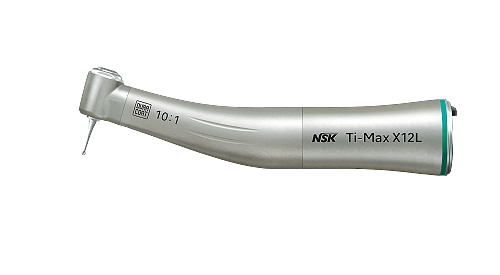

X12L10:1

  • General Applications/X12L
    • Optic
    • Model:X12L
    • Order Code:C606
    • Non-Optic
    • Model:X12
    • Order Code:C616

    Specifications

    • Gear Ratio
    • 10:1 Reduction
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 4,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

Straight Handpieces

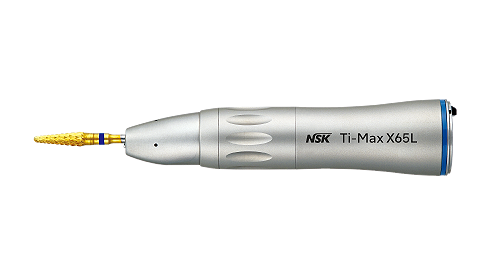

X65L1:1

  • Straight Handpieces/X65L
    • Optic
    • Model:X65L
    • Order Code:H273
    • Non-Optic
    • Model:X65
    • Order Code:H274

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35) / CA Burs (Ø2.35)*
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 40,000 min-1

    * Need to insert the supplied bur stopper

    Features

    • Cellular Glass Optics
    • Clean Head System

Endodontics Applications

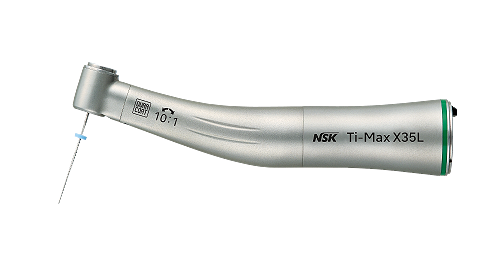

X35L10:1

  • Endodontics Applications/X35L
    • Optic
    • Model:X35L
    • Order Code:C620
    • Non-Optic
    • Model:X35
    • Order Code:C624

    Specifications

    • Gear Ratio
    • 10:1 Reduction
    • For
    • Hand File & Engine File / 60° Twist
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 4,000 min-1

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Microfilter

Prophylaxis Applications

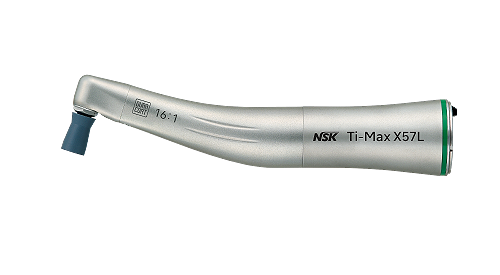

X57L16:1

  • Prophylaxis Applications/X57L
    • Optic
    • Model:X57L
    • Order Code:C609
    • Non-Optic
    • Model:X57
    • Order Code:C619

    Specifications

    • Gear Ratio
    • 16:1 Reduction
    • For
    • Screw-in Cups and Brushes / 360° Rotation
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 2,500 min-1

    Features

    • Cellular Glass Optics
    • Special Dust Proof

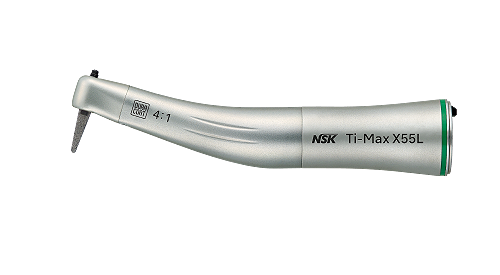

X55L4:1

  • Prophylaxis Applications/X55L
    • Optic
    • Model:X55L
    • Order Code:C608
    • Non-Optic
    • Model:X55
    • Order Code:C618

    Specifications

    • Gear Ratio
    • 4:1 Reduction
    • For
    • Profin / EVA Tips
      Vertical Reciprocating (Stroke Length 1.4 mm)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 10,000 min-1

    Features

    • Cellular Glass Optics
    • Microfilter
    • With Tip Lock Mechanism

    Lamineer tips not included

Surgical Applications

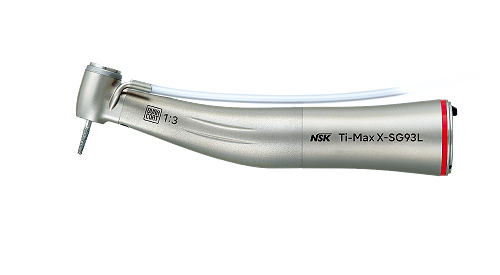

X-SG93L1:3

  • Surgical Applications/X-SG93L
    • Optic
    • Model:X-SG93L
    • Order Code:C1004
    • Non-Optic
    • Model:X-SG93
    • Order Code:C1007

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Triple Spray / External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 120,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

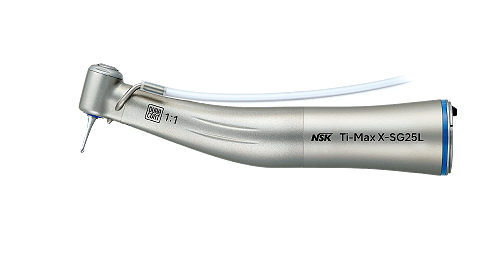

X-SG25L1:1

  • Surgical Applications2/X-SG25L
    • Optic
    • Model:X-SG25L
    • Order Code:C1011

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

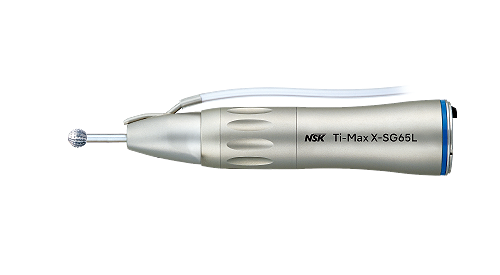

X-SG65L1:1

  • Surgical Applications/X-SG65L
    • Optic
    • Model:X-SG65L
    • Order Code:H1009
    • Non-Optic
    • Model:X-SG65
    • Order Code:H1038

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURAGRIP
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
