Technology & Function

  • Micromotor

    Ideally Suited for All Requirements of State-of-the-Art Dentistry
    With our unique 180-degree vector torque control technology it is possible to achieve high torque and smooth rotation within both high and low speed rotational ranges. Ideally suited to the requirements of dental practice.

    Full Endodontic Functionality
    Torque range from 0.3 - 3.0 Ncm including auto-stop and auto-reverse functions for endodontic treatment. Endodontic treatment can be performed with direct drive (1:1) contra-angle.

  • Ultrasonic Scaler

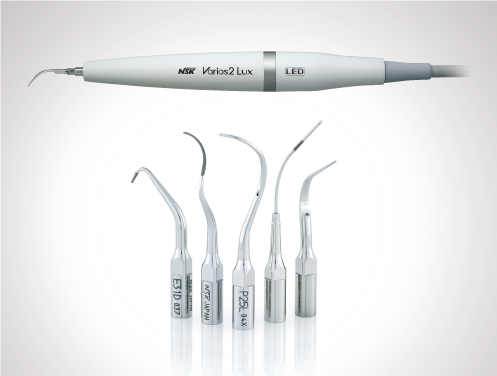

    Ultrasonic Scaler

    NSK iPiezo Ultrasonic Engine
    Provides the appropriate power at the tip end adapting to tooth conditions for firm or soft tartar. Safe scaling is possible even when removing hard tartar.

    Comprehensive Tip Range
    NSK offers more than 70 tips to optimize treatments in various clinical procedures, from caries removal to endodontic treatment and oral hygiene applications.

  • Foot Controls

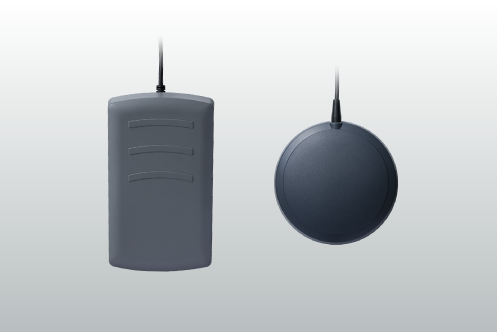

    Foot Controls

    For Treatments Performed by Just One Practitioner
    The micromotor, ultrasonic scaler and suction can be switched ON/OFF using one foot control in Sync mode.

    For Treatment Performed by 2 Operators, 1 Dentist / Hygienist and 1 Dental Nurse
    Switch micromotor, ultrasonic scaler and suction ON/OFF using two foot controls. The two in combination lets the dentist concentrate on operating the micromotor and scaler.

  • Control Panel

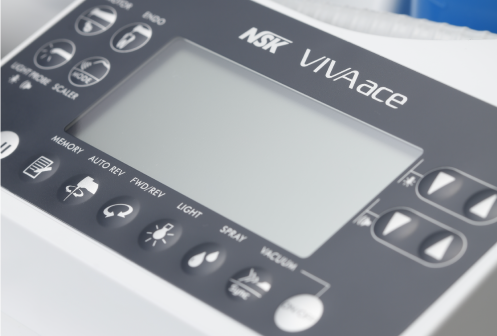

    Control Panel

    Intuitive easy to read control panel.

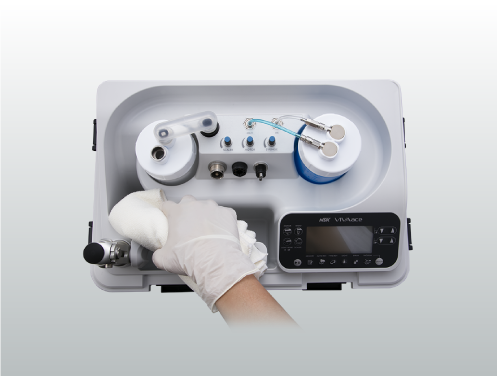

  • Maintenance

    Very easy to maintain.

  • Option Tool
    Option Tool

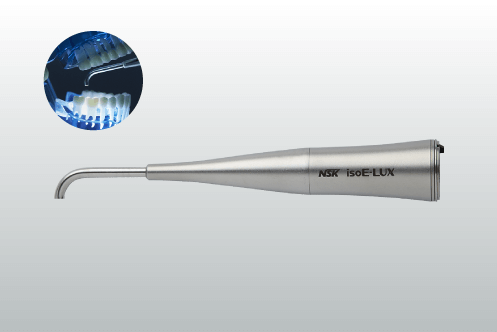

    Light Probe
    Bright illumination of the oral cavity in any treatment environment. Good accessibility with a slim body that also makes it possible to access hard-to-see areas.

VIVA ace

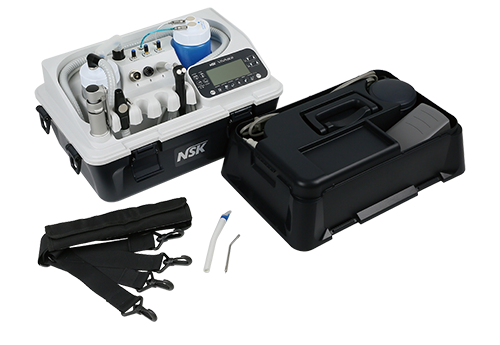

VIVA ace

  • Model:VIVA ace Complete Set
  • Order Code:Y1004228


  • Dimensions
  • W 462 x D 298 x H 284 mm
  • Unit Weight
  • 8.6 kg
  • Power Supply
  • AC 100-240 V 50/60 Hz


  • VIVA ace Basic Set
  • VIVA ace Motor Kit
  • VIVA ace Scaler Kit

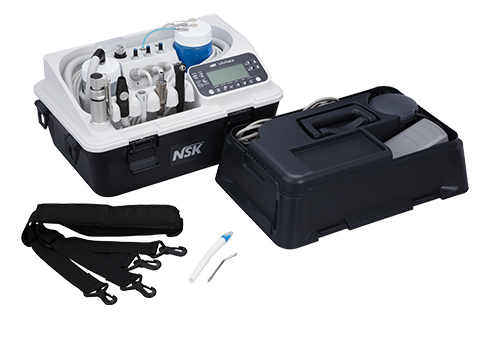

VIVA ace Basic Set

  • VIVA ace
    • Model:VIVA ace Basic Set
    • Order Code:Y1004229


    • Control Unit
    • AC Power Cord
    • Foot Control (FC-76S)
    • Foot Control (FC-70S)
    • Top Case
    • V-ace Vacuum Hose Set
    • V-ace Vacuum Bottle Set
    • V-ace Vacuum Nozzle (10)
    • V-ace Water Bottle Set
    • V-ace 3 Way Syringe Set
    • Shoulder Belt

VIVA ace Motor Kit

  • VIVA ace
    • Model:VIVA ace Motor Kit
    • Order Code:E1040002


    • Motor NLX plus
    • Motor Cord
    • Motor Cap
    • Protection Plug

VIVA ace Scaler Kit

  • VIVA ace
    • Model:VIVA ace Scaler Kit
    • Order Code:E351006


    • VA2-LUX Handpiece
    • Scaler Cord
    • Tip (G6, G8)
    • Tip Wrench
    • Tip Holder
